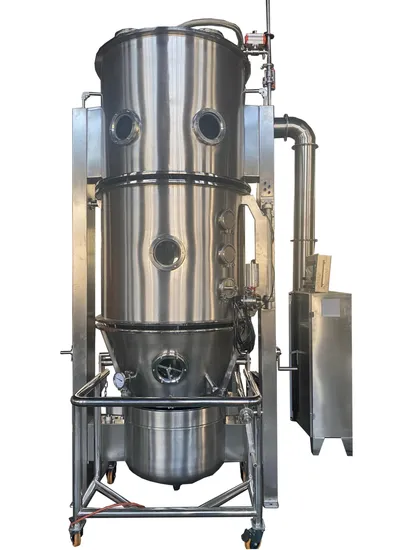

High-efficiency fluid bed dryer designed for uniform drying, mixing, and granulating of powder materials in the pharmaceutical, food, and chemical industries.
Constructed entirely from stainless steel (SUS304) with mirror-polished internal surfaces (Ra 0.3-0.5) to meet stringent GMP standards.
Features a 100,000-grade air filtration system with primary, medium, and sub-high efficiency filters, ensuring a sterile processing environment.
PLC controlled with a touch screen interface and frequency converter for precise regulation of air capacity and temperature.

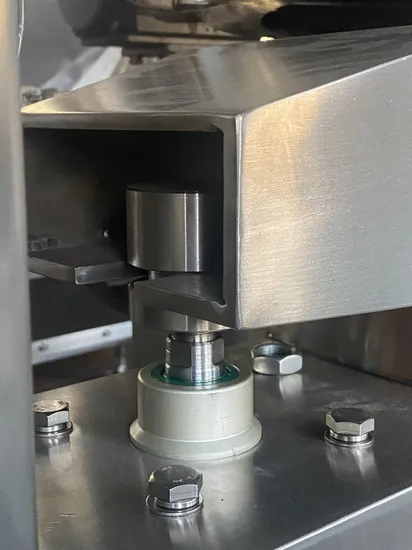

Operates under sealed, negative pressure conditions with a pneumatic cylinder head pressure seal, effectively preventing dust leakage and cross-contamination.
Achieves a final product moisture content as low as 1‰-5% with a material obtaining ratio of ≥99%, maximizing yield and product quality.
Model: FL-60
Production Capacity (Kg/batch): 40-60
Material Tank Volume (L): 230
Draught Fan Power (KW): 15
Steam Consumption (Kg/h): 100 (at 0.4-0.6 MPa)
Compressed Air Consumption (Kg/h): 0.8 (at 0.6-0.8 MPa)
